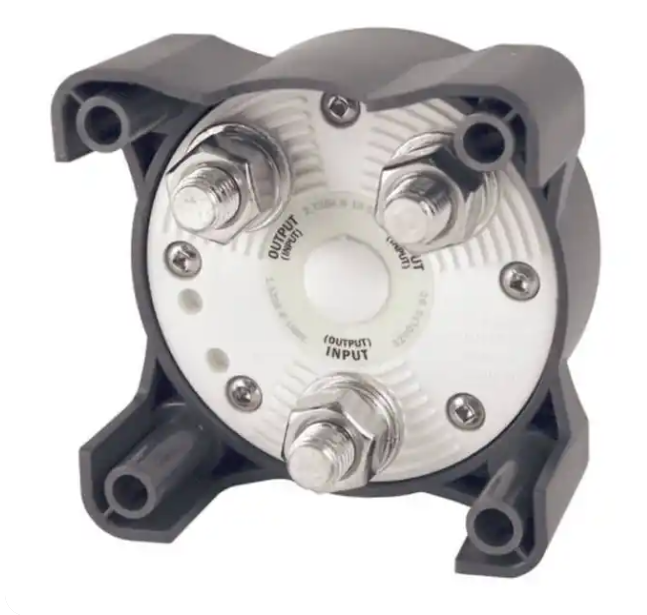

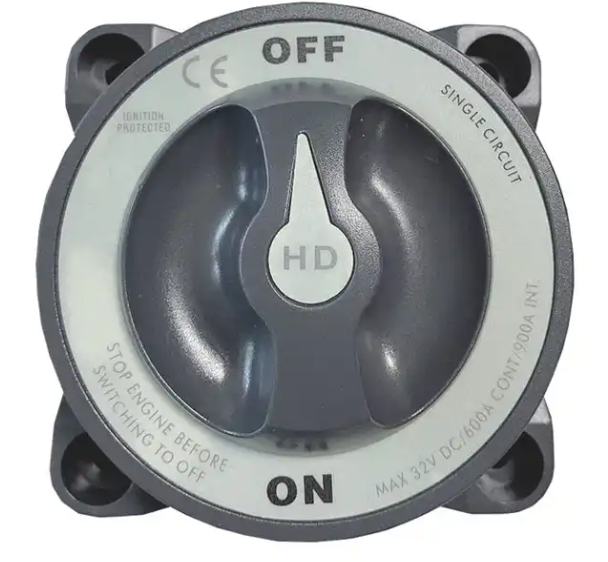

Battery Disconnect Switch 600A

Description

Color: Gray Switch

Positions: 2

Combine Batteries: No

Dynamo Disconnect when Engine is Running: No

Maximum Voltage: 32V DC

Continuous Current: 600A

Intermittent Current: 900A (periods of 5 minutes)

Maximum Current for 30 Seconds: 1750A

Battery Inputs: 1 Cable

Opening: 27.94 mm Maximum Cable Thickness: 4/0 AWG (120 mm²)

Connections: M12 Bolts (3x)

Dimensions: 95 x 95 x 80 mm

Weight: 0.59 kg
